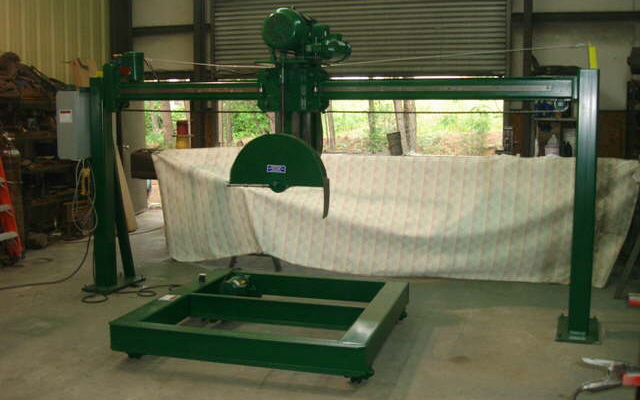

Granite Saw Post Type JM6P

Granite Saw Post Type JM6P

      JM6P Post Type Granite Saw specifications:

      1. To carry a 28” diamond blade with 30” blade guard.
      2. 18” of raise and lower
      3. Arbor shaft size is 1 15/16” with 6” flanges
      4. Travel of blade carriage to be automatic with D.C. variable control.
      5. Travel of blade to make 10’-6” cut.
      6. Rail constructed of 6” x 6” x ¼” square tube.
      7. ¼” CF strips to be bolted on top, bottom, and sides of rail for wear strips.
      8. Carriage constructed of 1/2” steel plate and adjustable 2 ½” CF roller bearing on top.
      9. Side bearings are 6205 roller bearings.
      10. Main motor is a 15 HP

      Saw Frame: Posts: (2) 6” Square tube


      Motorized Cart Specifications:
      1. Cart dimensions are 4’-6” x 6’-6”
      2. Constructed of 6” square tube and 6” channel.
      3. (4) 6” V wheels
      4. (8) 1 7/16” P.B. bearings and 13’ of 1 7/16” CRO.

      Options:
      1. Power cart controlled by push button
      2. Push cart
      3. Panel with auto step cutting feature.
      4. Cart with turn table
      5. Laser Light

      Terms: 50% Down (negotiable)
      45% upon completion
      5% 30 days after install
